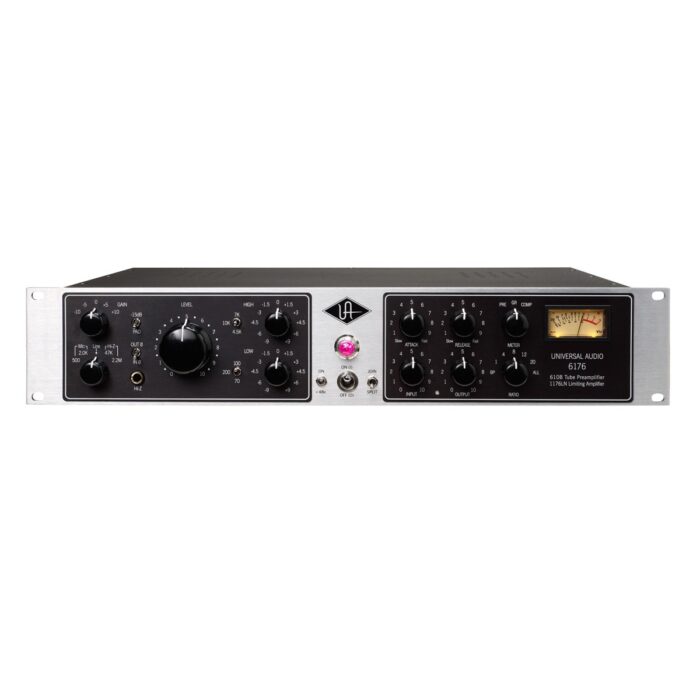

Universal Audio 6176 Vintage channel strip A classic tube microphone preamp and 1176LN compressor in a single unit. The 6176 Vintage Channel Strip combines the alluring, all-tube sounds of the legendary Bill Putnam-designed 610 microphone preamp, with the signature FET compression of our 1176LN, to create the ultimate recording channel strip. The warm, smooth tones of this mic preamp design — employed to record everyone from Frank Sinatra to Van Halen — and the unique characteristics of the compressor, are two major reasons why the 6176 is found in studios around the world. Key Features All-tube mic preamp section derived from legendary Bill Putnam-designed 610 modular console Signature 1176LN Class A FET compressor section — heard on countless hit records for more than 40 years “Split”” or “”Join”” switch allows separate or series operation of the preamp and compressor High and Low frequency shelving EQ Variable impedance Input, Gain, and Output levels Mic, balanced Line, and Hi-Z inputs Ultra-quiet operation Stereo interconnection via 1176-SA Hand-built in USA; backed by 1-Year limited warranty Specification : Preamp Microphone Input Impedance Selectable, 500 Ω(ohms) or 2k Balanced Line Input Impedance 20k Ω Hi-Z Input Impedance Selectable between 2.2 M Ω or 47 k Ω Maximum Microphone Input Level 18 dBu (2k input impedance and 15 dB Pad in) Maximum Output Level 20 dBm Internal Output Impedance 80 Ω Recommended Minimum Load 600 Ω Frequency Response 20 Hz to 20 kHz 0, -1 dB Maximum Gain 65 dB (500 Ω input impedance) Signal-to-Noise Ratio > 90 dB (@ maximum gain) Limiting Amplifier Input Impedance Selectable, 15k Ω (ohms) or 600 Ω Output Load Impedance 600 Ω (floating) Frequency Response 20 Hz to 20 kHz ± 1 dB Gain 40 dB, ± 1 dB Distortion > 0.5% T.H.D. from 50 Hz – 15 kHz with limiting, at 1.1 seconds release setting. Output of 22 dBm with no greater than 0.5% T.H.D. Signal-to-Noise Ratio > 75 dB Attack Time Adjustable, from 20 to 800 microseconds Release Time Adjustable, from 50 milliseconds to 1.1 seconds Stereo Interconnection Optional, using 1176SA stereo interconnect accessory General Tube Complement (1) 12AX7A, (1) 12AT7A Power Requirements 115V/230V Power Connector Detachable IEC power cable. Fuse 400 mA time delay (slow blow) / 115 V200 mA time delay (slow blow) / 230 V Power Indicator Light 28 V bulb (type 1819) Dimensions 1 9′ W x 3.5′ H x 12.25′ D (two rack unit) Weight 12 lb.
