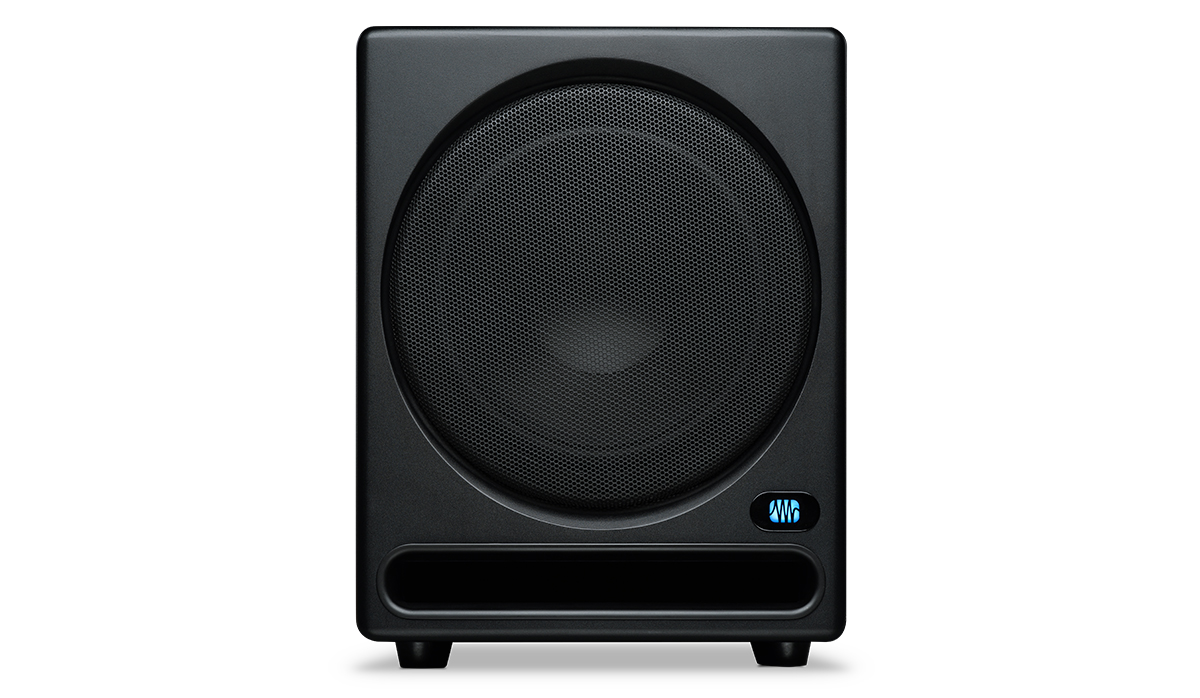

To hear what’s really going on at the bottom of your mixes, you need a subwoofer that speaks the truth. The Temblor® T10 lets you take charge of the low-frequency foundation of your mix with a combination of quality components and design, plenty of inputs and outputs, and extensive user controls not normally available in this price range. Customize your system until it’s just right. The T10 provide more user controls than any other subwoofer in their class, enabling seamless integration into your listening environment. Versatile I/O works with any setup. No other subwoofer anywhere close to the Temblor’s price range offers a comparable selection of inputs and outputs. Features: Main components 10-inch, front-firing, glass-composite low-frequency transducer Front-firing, bass-reflex acoustic port Controls and filters Input gain control (-30 dB to 6 dB, continuously variable) Continuously variable lowpass filter (50 Hz to 130 Hz) Built-in crossover Switchable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Temblor outputs to the main monitors Momentary footswitch (included) bypasses the subwoofer, highpass filter, and Sub Out Polarity invert Ground-lift switch Power and safety T10: 250 watt, Class AB amplification Internal damping and heat sink Integrated rubber feet for stable placement Inputs and outputs Left and right, balanced XLR and ¼” TRS and unbalanced RCA main inputs Left and right balanced XLR and ¼” TRS outputs XLR subwoofer output for connecting a second T10 Specifications: Inputs 2 – Balanced XLR 2 – Balanced 1/4″ TRS 2 – Unbalanced RCA Outputs 2 – Balanced XLR (full range with 80Hz HPF option) 2- Balanced ¼” TRS (full range with 80 Hz HPF option 2- Unbalanced RCA (full range with 80 Hz HPF option) Performance Frequency Response 20 Hz – 200 Hz Low Pass Filter Frequency 50 – 130 Hz (variable) Signal-to-Noise Ratio >98 dB (A weighted) THD 0.019% @ power <160W Amplifier Power 250W peak, 170W RMS Power Consumption 230W Amplifier Type Class AB Peak SPL at 1m 113 dB Woofer 10” glass-composite, Front-firing Acoustic Port Front-firing bass reflex User Controls Input Gain Range -30 to 6 dB Polarity Switch 0° or 180° Low Pass Filter Control 50 Hz to 130 Hz Ground Lift Switch On/Off High Pass Filter Switch On/Off Bypass Footswitch On/Off Protection RF interference Output-current limiting Over-temperature Turn-on/off transient Subsonic filter External mains fuse Power 100-120V ~50/60 Hz or 220-240V ~50/60 Hz Cabinet Vinyl-laminated MDF Physical Width 12.6” (320 mm) Depth 15.75” (400 mm) Height 15.75″ (400 mm) Weight 39.46 lbs (17.9 kg)
