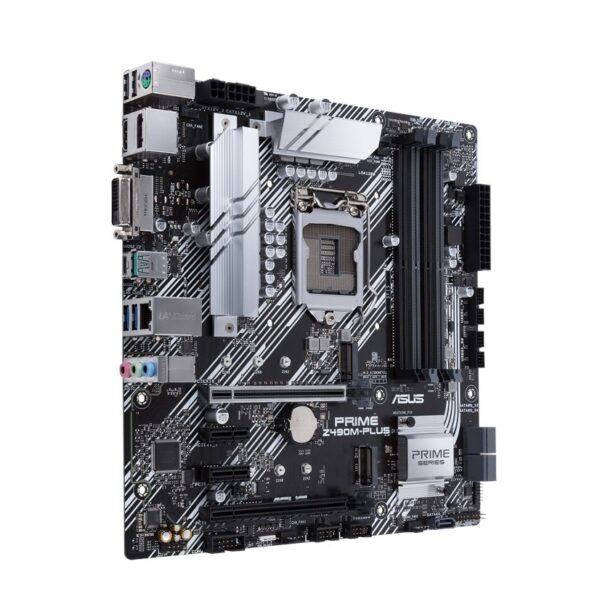

Asus MB PRIME-Z490M-PLUS Micro-ATX: Socket 1200 For Intel 10th Gen. Processors, 4x DDR4, 5x SATA 6Gb/s, 2x M.2, USB 3.2, Gigabit LAN, HDMI/DP/DVI-D, CrossFireX, Raid

Intel Z490 (LGA 1200) micro ATX motherboard with dual M.2, 9 DrMos power stages, HDMI, DisplayPort, DVI, SATA 6 Gbps, Intel 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C Intel� LGA 1200 socket: Ready for 10th Gen Intel� Core� processors Enhanced power solution: 8 1 DrMOS power stages, 6-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery Comprehensive cooling: VRM heatsink, hybrid fan headers and Fan Xpert 4 ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking Ultrafast connectivity: Dual M.2, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C� support Specifications: CPU Intel� Socket 1200 for 10th Gen Intel� Core�, Pentium� Gold and Celeron� Processors * Supports Intel� 14 nm CPU Supports Intel� Turbo Boost Technology 2.0 and Intel� Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel� Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel� Z490 Memory 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel� Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel� Core檌9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b 1 x DVI-D *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots Intel� 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) *1 Intel� Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1 Storage Total supports 2 x M.2 slots and 5 x SATA 6Gb/s ports Intel� Z490 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 5 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel� Rapid Storage Technology supports Intel� Optane� Memory Ready LAN Intel� I219-V 1Gb Ethernet Audio Realtek� ALC887 8-Channel High Definition Audio CODEC – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – LED-illuminated design – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors USB Ports Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A 1 x USB Type-C�) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 8 ) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility EPU Digi VRM Fan Xpert 4 – EZ update AI Charger WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS 5X PROTECTION III – ASUS DIGI VRM (- Digital power design with Dr. MOS) – ASUS LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot Core – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-Slot ASUS Thermal Solution – Aluminum heatsink design ASUS EZ DIY – Procool Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (1 x Type-A 1 x USB Type-C�) 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s) Internal I/O Ports 1 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Lighting Control RGB Strip Header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 5 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 4-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header Accessories I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD User manual BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows� 10 64-bit Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) Note *1 Support PCIe bifurcation for RAID on CPU function. *2 When a device in SATA mode is installed on the M.2_2 socket, SATA 6G_1 port cannot be used. SKU: PRIME-Z490M-PLUS Category: Intel LGA1200
