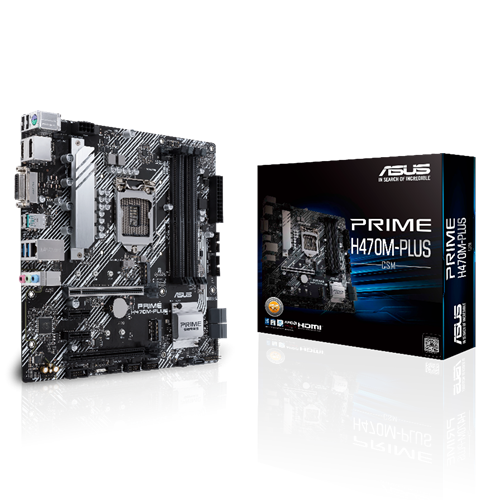

Asus PRIME-H470M-PLUS/CSM, M-ATX Motherboard: H470 Socket 1200 For 10th Gen Intel Processors, 4x DDR4, 5x SATA 6Gbps, 2x M.2, USB 3.2, HDMI/DVI/DP, Gigabit LAN, Audio
$59.18
$85.82
PRIME H470M-PLUS/CSM Intel H470 (LGA 1200) micro ATX motherboard with dual M.2,HDMI, DisplayPort, DVI, SATA 6 Gbps, Intel 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors Comprehensive cooling: VRM heatsink, hybrid fan headers and Fan Xpert 4 ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking Ultrafast connectivity: Dual M.2, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C support Full Specifications CPU Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors * Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** CHIPSET Intel H470 MEMORY 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem GRAPHIC Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b 1 x DVI-D *Graphics specifications may vary between CPU types. MULTI GPU SUPPORT Supports AMD 2-Way CrossFireX Technology EXPANSION SLOTS Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel H470 Chipset 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1 STORAGE Total supports 2 x M.2 slots and 5 x SATA 6Gb/s ports Intel H470 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) *1 5 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready LAN Intel I219-V 1Gb Ethernet WIFI n/a BLUETOOTH n/a AUDIO Realtek ALC887 8-Channel High-Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature: – LED-illuminated design – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors USB PORTS Rear USB Port (Total 6) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A 1 x USB Type-C) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port (Total 8) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) SOFTWARE FEATURES ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance and Power Saving Utility EPU Digi VRM Fan Xpert 4 – EZ update AI Charger WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode ASUS SPL FEATURES ASUS 5X PROTECTION III – ASUS DIGI VRM (- Digital power design with Dr. MOS) – ASUS LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot Core – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-Slot ASUS Thermal Solution – Aluminum heatsink design ASUS EZ DIY – Procool BACK I/O PORTS 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (1 x Type-A 1 x USB Type-C®) 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s) IN TERNAL I/O PORTS 1 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Lighting Control RGB Strip Header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 5 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 4-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header ACCESSORIES I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD User manual BIOS 128 Mb Flash ROM, UEFI AMI BIOS MANAGEABILITY WOL by PME, PXE OS Windows 10 64-bit FORM FACTOR mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm ) SKU: PRIME-H470M-PLUS/CSM Category: Intel LGA1200
