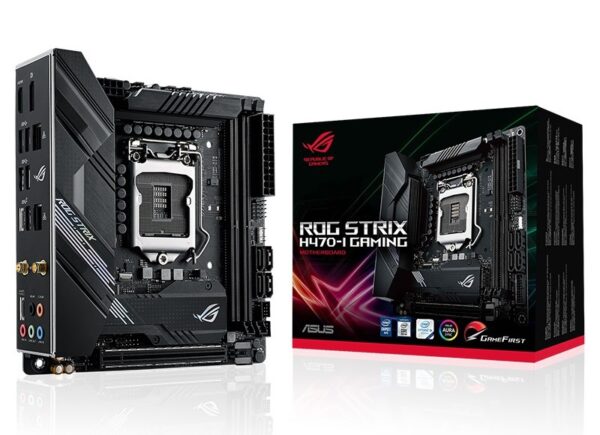

Asus MB ROG-STRIX-H470-I GAMING Mini-ITX: Socket 1200 For Intel 10th Gen. Processors, 2x DDR4, 1x PCIE3.0 x16, 4x SATA3, 2x M.2, 8x USB 3.2, DisplayPort, HDMI, WiFi 6, 2x Gigabit LAN

Intel H470 LGA 1200 mini-ITX gaming motherboard featuring teamed power stages, AI Networking, WiFi 6 (802.11ax), dual 1Gb Ethernet, dual M.2 and SATA. Intel� LGA 1200 socket: Ready for 10th Gen Intel� Core� processors. Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors. Super-smooth Networking: On-board Intel� Wi-Fi 6 AX201 (802.11 ax) and dual 1Gb Ethernet with ASUS LANGuard. Best Gaming Connectivity: Features dual M.2 and USB 3.2 Gen 2 Type-C�, Audio USB Type-C� port plus HDMI� 1.4b and DisplayPort 1.4 output support. Renowned Software: Intuitive dashboards including UEFI BIOS and ASUS-exclusive tool AI Networking to help configure gaming builds. Industry-leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS� Sound Unbound and Sonic Studio III for immersive audio. Specifications: CPU Intel� Socket 1200 for 10th Gen Intel� Core�, Pentium� Gold and Celeron� Processors Supports Intel� 14 nm CPU Supports Intel� Turbo Boost Technology 2.0 and Intel� Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel� Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel� H470 Memory 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel� Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel� Core檌9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. Expansion Slots Intel� 10th Gen Processors 1 x PCIe 3.0 x16 Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel� Optane� Memory Ready LAN Intel� I219-V 1Gb Ethernet Realtek RTL8111H 1Gb Ethernet ASUS LANGuard Wireless Data Network Intel� Wi-Fi 6 AX201 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed Up to 2.4Gbps transfer speed Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC – Dual OP Amplifiers – Impedance sense for front and rear headphone outputs – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/192kHz playback Audio Feature : – SupremeFX Shielding� Technology – Rear audio USB Type-C� port – Premium Japanese audio capacitors * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. USB Ports Rear USB Port ( Total 7 ) 2 x USB 3.2 Gen 2 port(s) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 1 x USB 2.0 port(s)(1 x USB Type-C�) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) Software Features [ROG Exclusive Software] – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III Sonic Studio Virtual Mixer – Sonic Radar III – DTS� Sound Unbound – Overwolf – Anti-virus software [ASUS Exclusive Software] Armoury Crate – Aura Creator – Aura Sync AI Suite 3 – Performance And Power Saving Utility: -TurboV EVO, EPU, Digi VRM, Fan Xpert 4 – EZ update ASUS CPU-Z DAEMON Tools WinRAR [UEFI BIOS] ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey ASUS Special Features Extreme Engine Digi – 5K Black Metallic Capacitors ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink ASUS EZ DIY – BIOS FlashBack� button – BIOS FlashBack� LED – Procool – Pre-mounted I/O shield – SafeSlot AURA Sync – Standard RGB header(s) – Addressable Gen 2 RGB header(s) Rear audio USB Type-C� connector Back I/O Ports 1 x Intel� I219-V 1Gb Ethernet 1 x Realtek RTL8111H 1Gb Ethernet 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 (red)Type-A USB Type-CTM 4 x USB 3.2 Gen 1 1 x USB 2.0 *3 5 x Audio jack(s) Internal I/O Ports 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 1 x M.2 with E key for Wi-Fi module 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector Accessories User’s manual 2 x SATA 6Gb/s cable(s) 1 x pack of cable tie 1 x Supporting DVD 1 x ROG Strix stickers 1 x Extension cable for Addressable LED 1 x ROG Thank you card 1 x Wi-Fi moving antenna 1 M.2 SSD screw package(s) 1 ROG key chain BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows� 10 64-bit Form Factor Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) Note *when M.2_1 is operating in SATA mode, SATA6G_2 will be disabled *3 1 x audio USB Type-C� SKU: ROG-STRIX-H470-I GAMING Category: Intel LGA1200
