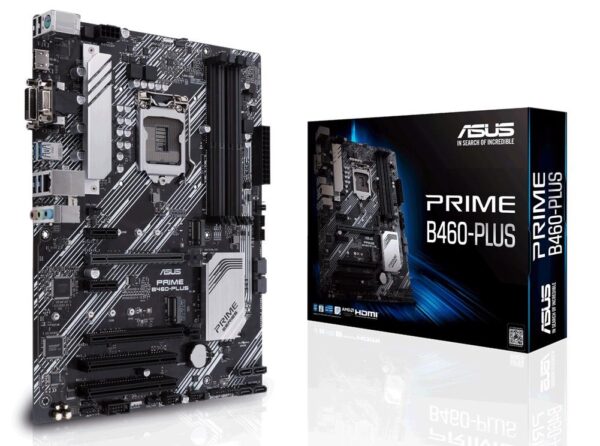

Asus PRIME-B460-PLUS, MB B460 ATX: Socket 1200 For Intel 10th Gen. Processors 4x DDR4, 2x M.2, 6x SATA3, 6x USB 3.2, Gigabit LAN, CrossFireX, VGA/DVI-D/HDMI, Raid

Intel B460 (LGA 1200) ATX motherboard with RGB headers, dual M.2, DDR4 2933MHz, HDMI, D-sub, DVI, USB 3.2 Gen 1 ports, Intel Optane memory ready, SATA 6 Gbps Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability. Fan Xpert 2 : Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming. 5X Protection III: Multiple hardware safeguards for all-round protection. Ultrafast connectivity: Supreme flexibility with native M.2 support for Lightning-fast storage speeds Specifications: CPU Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors * Supports Intel� 14 nm CPU Supports Intel� Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel B460 Memory Intel B460 Chipset 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel� Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel Core i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor 1 x D-Sub 1 x HDMI 1.4b 1 x DVI-D 1.4 *Graphics specifications may vary between CPU types. Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots Intel� 10th Gen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel� B460 Chipset 1 x PCIe 3.0/2.0 x16 (x4 mode) 2 x PCIe 3.0/2.0 x1 2 x PCI Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel� B460 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane  Memory Ready LAN Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard Audio Realtek ALC887 7.1-Channel High Definition Audio CODEC * – Supports : Jack-detection, up to 24-Bit/192kHz playback Audio Feature : – LED-illuminated design – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. USB Ports Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s) 4 x USB 2.0 port(s) Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi VRM Fan Xpert 2 – EZ update AI Charger ASUS CPU-Z DAEMON Tools Norton Anti-virus software(Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS 5X PROTECTION III – ASUS DIGI VRM – ASUS LANGuard – ASUS Overvoltage Protection – ASUS Safeslot core – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-Slot ASUS Lighting Control – Standard RGB headers Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s) Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AAFP connector 2 x Lighting Control RGB Strip Header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header Accessories User’s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows� 10 64-bit Form Factor ATX Form Factor 12 inch x 9.0 inch ( 30.5 cm x 22.86 cm ) Note *M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled. SKU: PRIME-B460-PLUS Category: Intel LGA1200
